• Combi XTM 3500-24 3000VA 24 V
  • Combi XTM 3500-24 3000VA 24 V

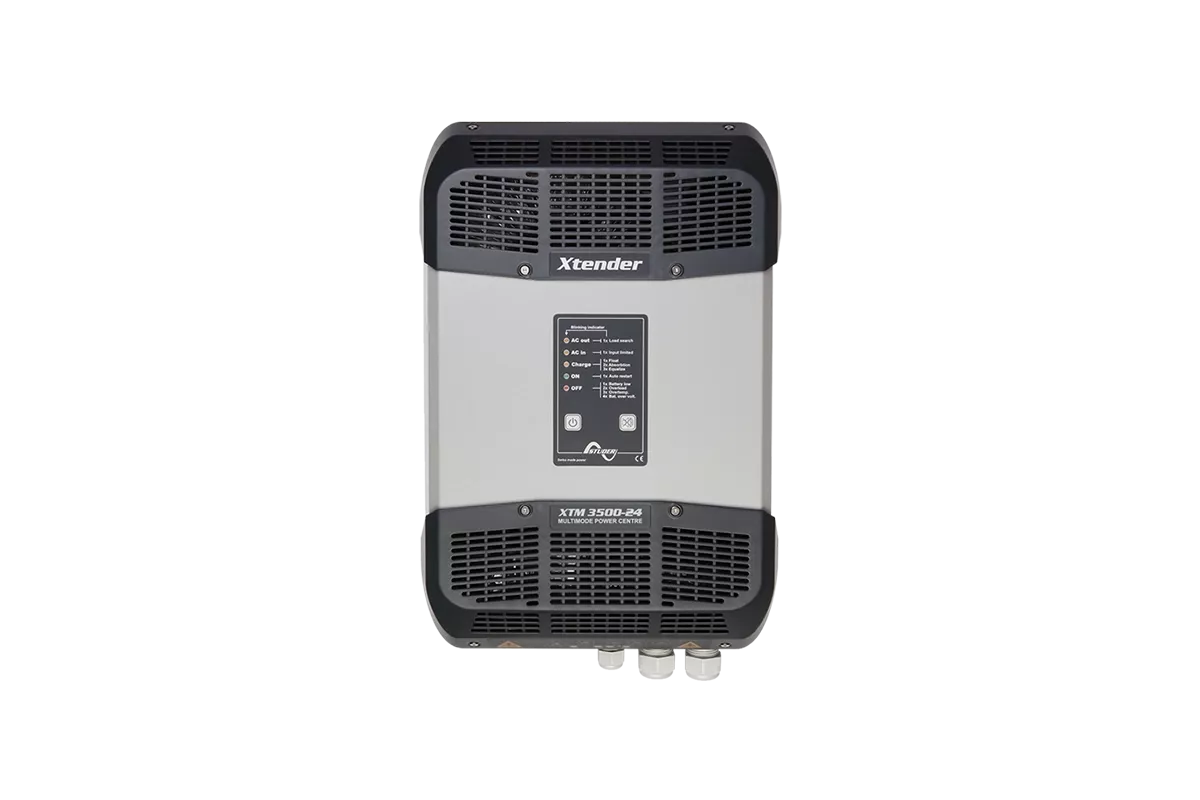

Combi XTM 3500-24 3000VA 24 V

The XTM 3500-24 combi from the Xtender series combines a highly efficient 230 V inverter (3000 W continuous power) with a powerful charger (24 V/90 A).

Highlights

  • Combines inverter and charger
  • Outstanding efficiency
  • Highly resilient
  • Versatile
  • Combineable for 3-phase current

Details

  • Nominal voltage (battery): 24 V
  • Output power (AC), continuous: 3,000 W
  • Product number: 0201052435
  • Unit price: 3,806.35 EUR

In the chosen option // plus VAT // plus shipping

Choose other variant

Product description

The XTM 3500-24 3000VA is ideal for energy management in an electrical system with a 24 Volt battery. Within its input voltage range of 19 – 34 V, the charging profile can be freely adjusted depending on the battery type or operating mode to enable fast and gentle charging with up to 90 A charging current. The robust inverter of the XTM 3500-24 generates an AC voltage of 230 volts (50 Hz true sine wave) and provides an output power of 3000 Watts in continuous operation, and even 3.500 Watts for up to 30 minutes.
By connecting several XTM 3500-24 Xtenders, operation as a multi-component system is also possible:
  • Up to 3 XTM 3500-24 in parallel operation,
  • 3 × XTM 3500-24 in a three-phase network,
  • 3 × 2 or 3 XTM 3500-24 in parallel in a three-phase network.

Technical Information

Nominal voltage (battery)
24 V
Output power (AC), continuous
3,000 W
Charging current
90 A
International Protection (IP class)
IP20
Level of efficiency
> 94 %
Output power (AC), 30 minutes
3,500 W
Dimensions (L x W x H)
466 x 322 x 133 mm
Weight
21.2 kg

Variants

Reset all filters

  • Combi XTM 3500-24 3000VA 24 V

    0201052435

    Output power (AC), continuous
    3,000 W
    Nominal voltage (battery)
    24 V
    Current variant

  • Combi XTH 5000-24 4500VA 24 V

    0201052450

    Output power (AC), continuous
    4,500 W
    Nominal voltage (battery)
    24 V
    Select variant

  • Combi XTM 4000-48 3500VA 48 V

    0201054840

    Output power (AC), continuous
    3,500 W
    Nominal voltage (battery)
    48 V
    Select variant

  • Combi XTM 3500-24 3000VA 24 V

    0201054880

    Output power (AC), continuous
    7,000 W
    Nominal voltage (battery)
    48 V
    Select variant
