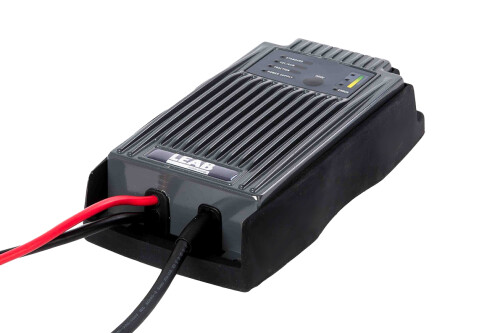

Workshop Charger Champ 1230 Pro PWC
Small, compact and waterproof workshop charger for wet, gel/AGM and traction batteries with power supply function.Highlights
- 3 charging characteristics available
- Charge indicator via LED
- Reverse polarity protection & short circuit proof
- Rubber housing protection
Details
- Product number: 0101143890
- Unit price: 295.00 EUR
In the chosen option // plus VAT // plus shipping
Product description
Small, compact and waterproof charger with adjustable charging characteristic, integrated temperature sensor and power supply function The Champ Pro chargers are extremely robust built-in chargers for the special vehicle sector. Due to the robust construction with a stable metal housing and a fully encapsulated circuit board, all units of the series are waterproof and dustproof to IP67. The all-rounders can be used in all 12- and 24-volt on-board power supply systems with lead-acid batteries. They are suitable for charging and for trickle charging of auxiliary batteries.Technical Information
- Balancing Charge
- 16 V
- Battery capacity
- 90 Ah ... 300 Ah
- Building main fuse
- B16 A/C16 A
- Cable length, AC input
- 2 m
- Cable length, DC output
- 1.5 m
- Charging characteristic
- 4 selectable charging programms
- Charging current
- 30 A
- Connection DC output
- Pole Clamps
- Connector, AC input
- Schuko plug (type F)
- Eingangswerte
- 205 V ... 250 V
- Input frequency range
- 40 Hz ... 60 Hz
- Input voltage (AC)
- 230 V
- International Protection (IP class)
- IP67
- Level of efficiency
- > 88 %
- Main charge
- 14,1 V/14,4 V
- Operating temperature
- -30 °C ... +40 °C
- Output voltage
- 12 V
- Protection class
- I
- Ripple
- < 3 %
- Temperature sensor
- Yes
- Trickle charge
- 13.6 V/13.8 V
- Type of battery
- Lead acid (wet, gel, AGM)/traction
- Dimensions (L x W x H)
- 195 x 98 x 47 mm
- Weight
- 1.7 kg
